Main elements of the Solar Life
|

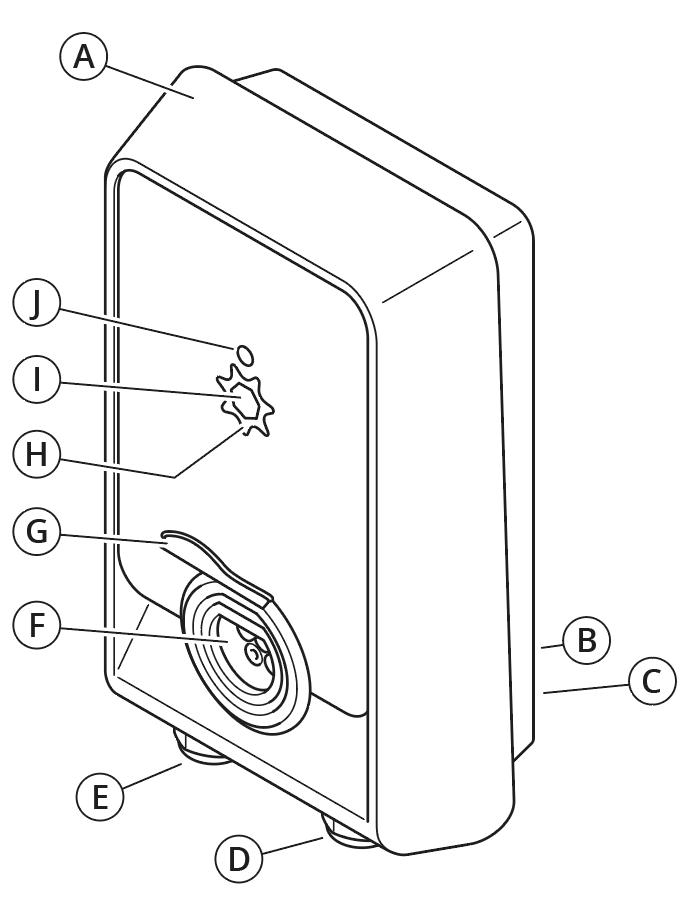

Model SL110001, SL110002, SL110005, SL110006
|

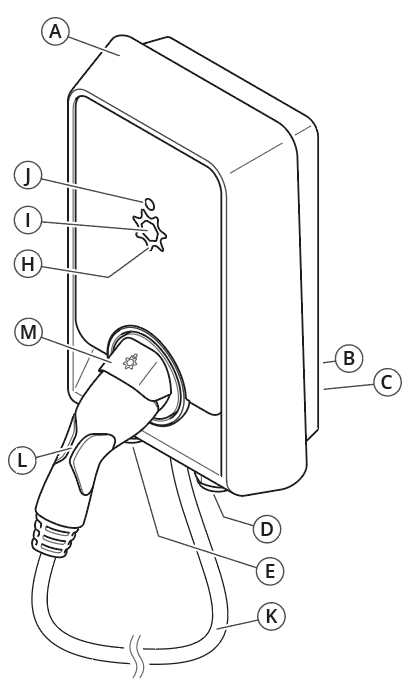

Model SL110003, SL110007
|
|
|
ID |
Element |
ID |
Element |
|---|---|---|---|
|
A |
Trim cover |
H |
We Drive Solar logo (LED ring) |
|
B |
Power cable entry (back panel) |
I |
RFID reader |
|
C |
Data cable entry (back panel) |
J |
Status LED |
|
D |
Data cable gland M32 (bottom panel) |
K |
Charging cable (fixed) |
|
E |
Power cable gland M32 (bottom panel) |
L |
Plug |
|
F |
Outlet (Socket Type 2 or Type 2S) |
M |
Plug holder |
|
G |
Socket cover |

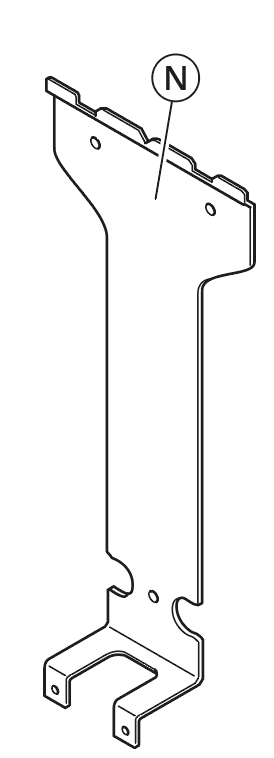

N |
Mounting bracket |
